Diplexers

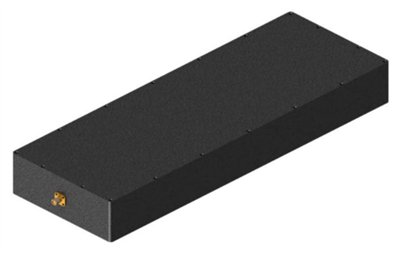

CMIBFNF-3.3-4.2G

General Parameters:
Frequency (MHz): 3300 to 4200
Insertion Loss (dB Max): 2.5
Connectors: SMA (F)
Rejection: 55 dB @ DC - 2700 MHz, 55 dB @ 5100 - 8000 MHz, 40 dB min
Band Pass Input Frequency Range (MHz): 2000
Band Reject Input Frequency Range (MHz): 8000
VSWR (Max): 2.0
Power (W): 1
