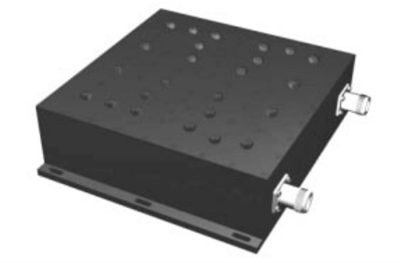

CMIF228-CDMA&GSM-02

CMIF228-CDMA&GSM-02
Datasheet

Product Specifications

General Parameters:
Frequency (MHz): 825 to 880, 909 to 960
Insertion Loss (dB Max): 0.8
Connectors: N-K
Designed for Systems: CDMA/GSM
Insertion Loss (dB Typ): 0.5
Passband Ripple (dB Max, p-p): 0.5
Return Loss (dB): 14
Stopband Attenuation (dB): 70 Relative, 65 Relative
Operating Temperature: -30 to +55 ?
Storage Temperature: -40 to +85 ?
