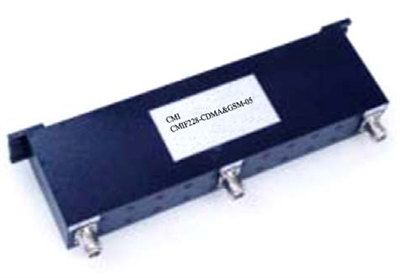

CMIF228-CDMA&GSM-05

CMIF228-CDMA&GSM-05
Datasheet

Product Specifications

General Parameters:
Frequency (MHz): 825 to 835, 870 to 880, 909 to 915, 954 to 960
Insertion Loss (dB Max): 1.8
Connectors: N-F, SMA-F
Designed for Systems: CDMA/GSM
Insertion Loss (dB Typ): 1.6
Passband Ripple (dB Max, p-p): 0.5
Return Loss (dB): 18
Stopband Attenuation (dB): 80 (CDMA Up to Down), 90 (GSM Up to Down)
Operating Temperature: -30 to +55 ?
Storage Temperature: -40 to +85 ?
