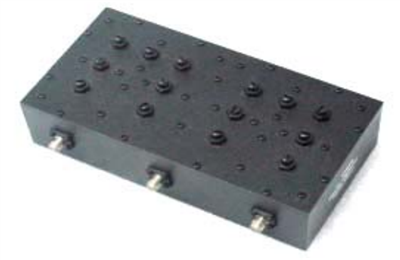

CMIF228-GSM-01

CMIF228-GSM-01
Datasheet

Product Specifications

General Parameters:
Frequency (MHz): 909 to 915, 954 to 960
Insertion Loss (dB Max): 1.0
Connectors: SMA
Designed for Systems: GSM
Insertion Loss (dB Typ): 0.6
Passband Ripple (dB Max, p-p): 0.5
Return Loss (dB): 18
Stopband Attenuation (dB): 90 @ Channel
Operating Temperature: -30 to +75 ?
Storage Temperature: -40 to +85 ?
