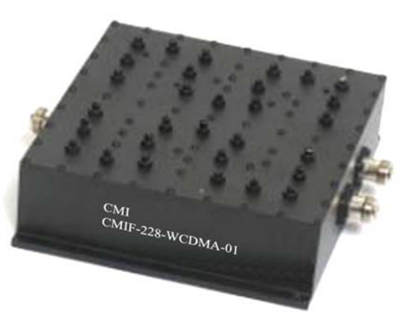

CMIF228-WCDMA-01

CMIF228-WCDMA-01
Datasheet

Product Specifications

General Parameters:
Frequency (MHz): 1920 to 1980, 2110 to 2170
Insertion Loss (dB Max): 1.0
Connectors: SMA/N
Designed for Systems: WCDMA
Insertion Loss (dB Typ): 0.8
Passband Ripple (dB Max, p-p): 0.5
Return Loss (dB): 18
Stopband Attenuation (dB): 45 (1900 /2000 MHz), 45 (2190/2090 MHz), 90 @ Channel
Operating Temperature: -30 to +75 ?
Storage Temperature: -40 to +85 ?
