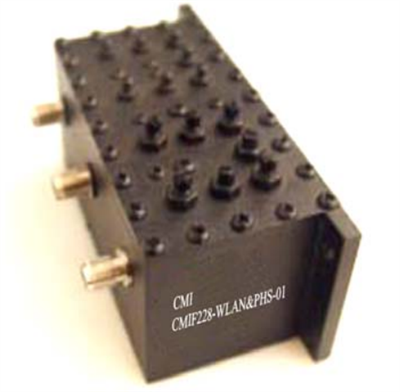

CMIF228-WLAN&PHS-01

CMIF228-WLAN&PHS-01
Datasheet

Product Specifications

General Parameters:
Frequency (MHz): 1885 to 1920, 2400 to 2483
Insertion Loss (dB Max): 1.0
Connectors: SMA/N
Designed for Systems: WLAN/PHS
Insertion Loss (dB Typ): 0.6
Passband Ripple (dB Max, p-p): 0.6
Return Loss (dB): 18
Stopband Attenuation (dB): 75 @ Channel
Operating Temperature: -30 to +75 ?
Storage Temperature: -40 to +85 ?
