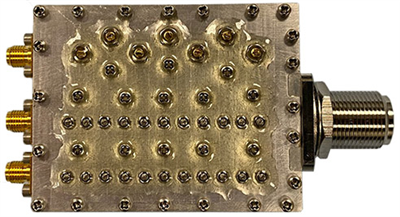

CMIMUX3-90DB-03A

CMIMUX3-90DB-03A
Datasheet

Product Specifications

General Parameters:
L-Band Frequency (MHz): 1350 to 1390
S-Band Frequency (MHz): 2200 to 2400
C-Band Frequency (MHz): 4400 to 5000
Insertion Loss (dB) Max: 0.8
VSWR (Max): 1.7
Port Isolation: = 90dB@1350-1390 MHz, = 90dB@ 2200-2400 MHz, = 90dB@ 4400-5000 MHz
Max. Input Power (W): 15
Operating Temperature: -40º - +70º C
Connectors: N-Female, SMA-Female
