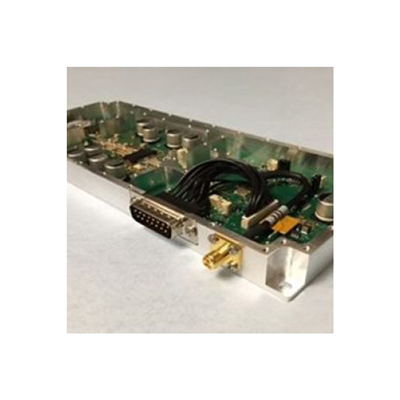

CMIPA-806-1

CMIPA-806-1
Datasheet

Features

Electrical Specifications:

  • Frequency Range: 791 MHz to 821 MHz
  • Power Output of (Psat) of 30 watts and P1dB of 20 watts continuous
  • Small Signal Gain: 45dB +/- 1 dB with a flatness of +/- 1.5dB

Product Specifications

General Parameters:
Frequency Min (MHz): 791
Frequency Max (MHz): 821
Gain (dB): 45 +/-1 dB
Connector: SMA Female
Operating Temperature: -45°C to +85°C
VSWR (Max): 2.1
Harmonics: -50 dBc Typ, -45 dBc max
Output Power (Psat): 30 W
Output Power (P1dB): 20 W
Gain Flatness: 1.5 dB
