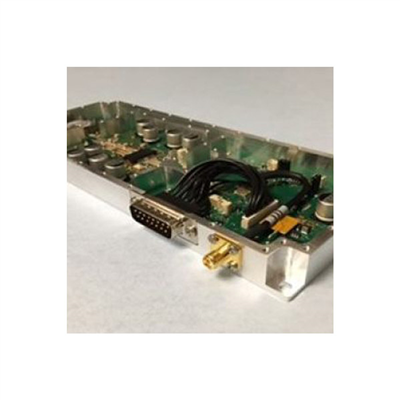

CMIPA-942.5-1

CMIPA-942.5-1
Datasheet

Features

Electrical Specifications:

  • Frequency Range: 925-960 MHz
  • Output Power (Psat): 30W Typ (CW 1 tone)
  • Output Power (P1dB): 20W Min (CW 1 tone)

Product Specifications

General Parameters:
Frequency Min (MHz): 925
Frequency Max (MHz): 960
Gain (dB): 45 +/-1 dB
Connector: SMA Female
Operating Temperature: -20°C to +55°C
VSWR (Max): 2.1
Harmonics: -50 dBc Typ, -45 dBc max
Output Power (Psat): 30 W
Output Power (P1dB): 20 W
Gain Flatness: 1.5 dB
